Ladders

One Wall

LS-04-1121

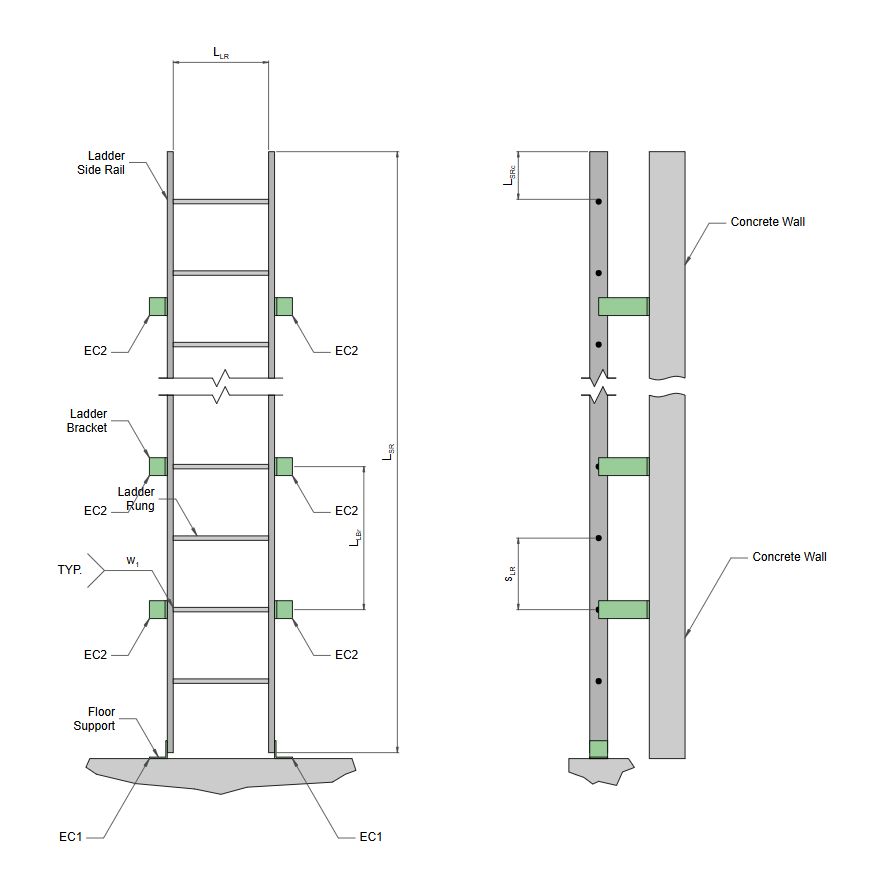

Design of Ladder System with Round Bar Rung and Flat Bar Side Rail, with Bent Plate Wall Connection to One Wall Type and Angle Connection to Concrete Slab.

Applicable wall type(s):

  • Concrete Wall

  • Masonry Wall

  • Stud Wall

LS-04-1121
LS-04-3121

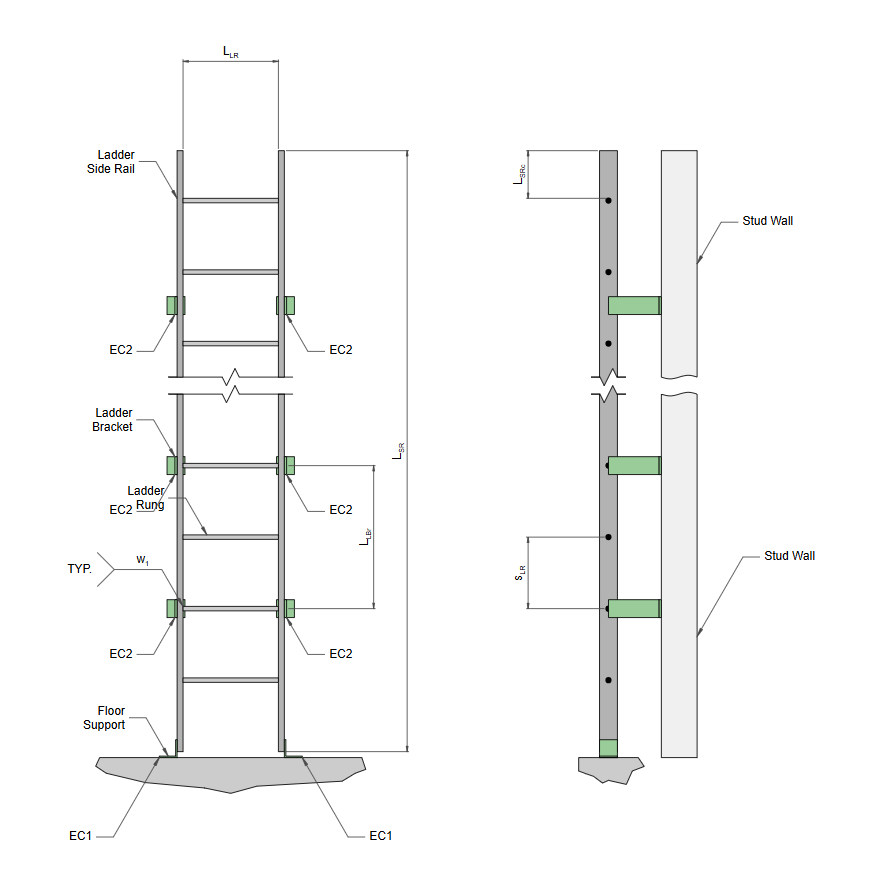

Design of Ladder System with Round Bar Rung and Flat Bar Side Rail, with Connection Plate to End Plate Wall Connection to One Wall Type and Angle Connection to Concrete Slab.

Applicable wall type(s):

  • Study Wall

LS-04-3121
LS-33-1121

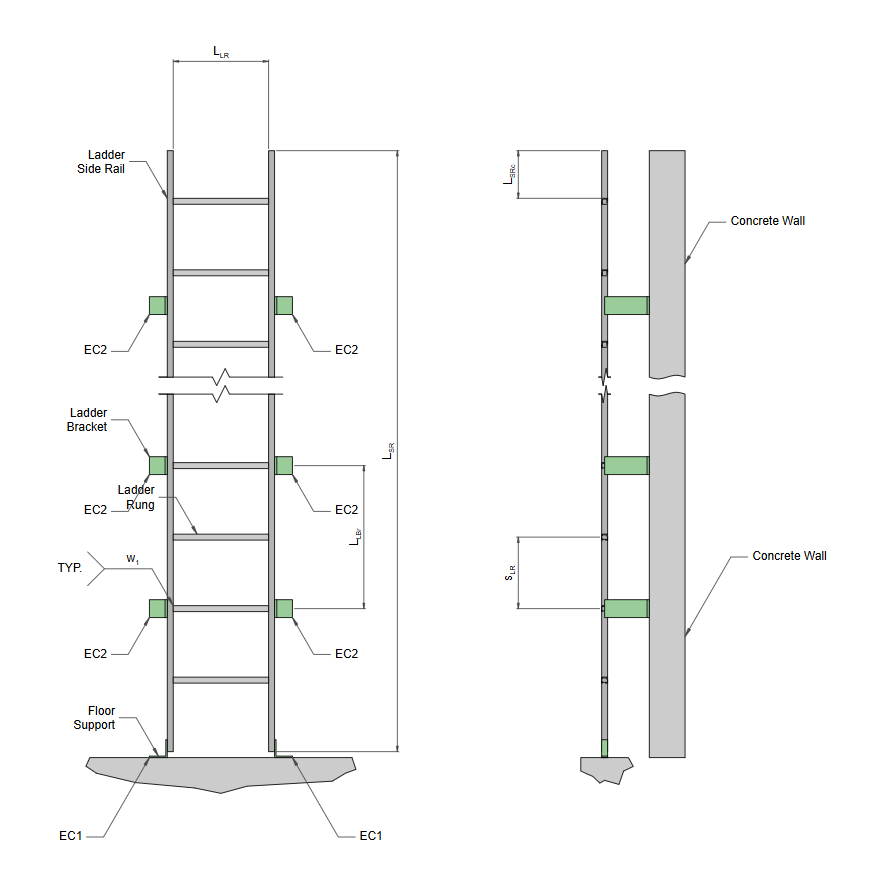

Design of Ladder System with HSS Rung and HSS Side Rail, with Bent Plate Wall Connection to One Wall Type and Angle Connection to Concrete Slab.

Applicable wall type(s):

  • Concrete Wall

  • Masonry Wall

  • Stud Wall

LS-33-1121
LS-53-1121

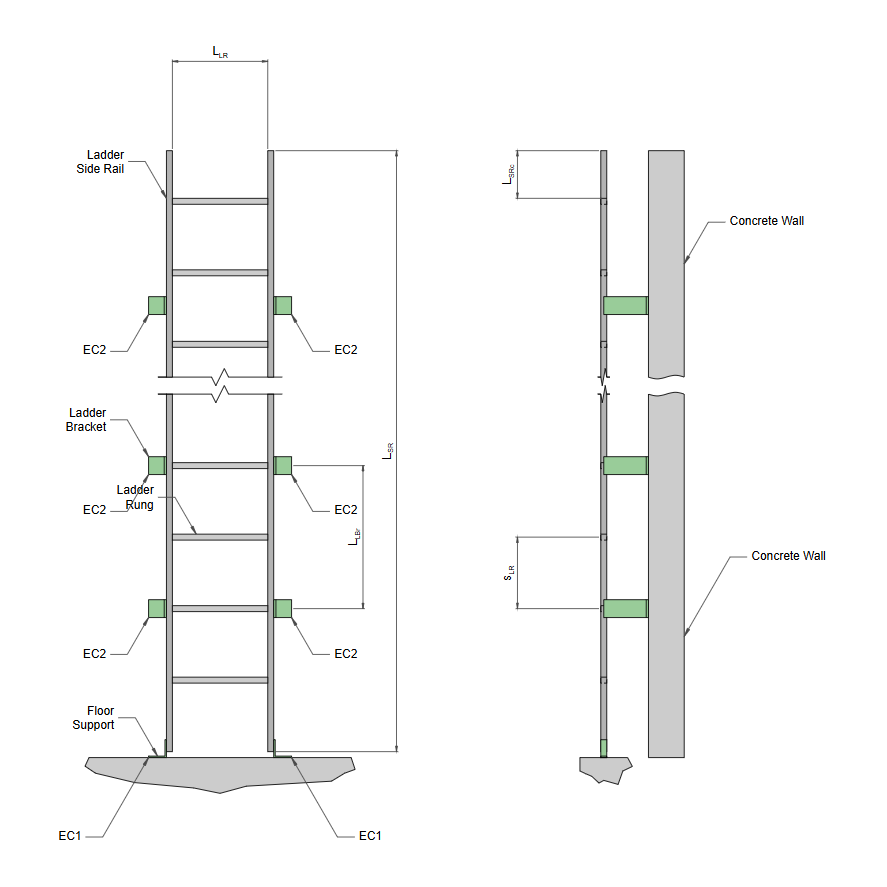

Design of Ladder System with Flat Bar Rung and HSS Side Rail, with Bent Plate Wall Connection to One Wall and Angle Connection to Concrete Slab.

Applicable wall type(s):

  • Concrete Wall

  • Masonry Wall

  • Stud Wall

LS-53-1121

Two Walls

LS-04-1221

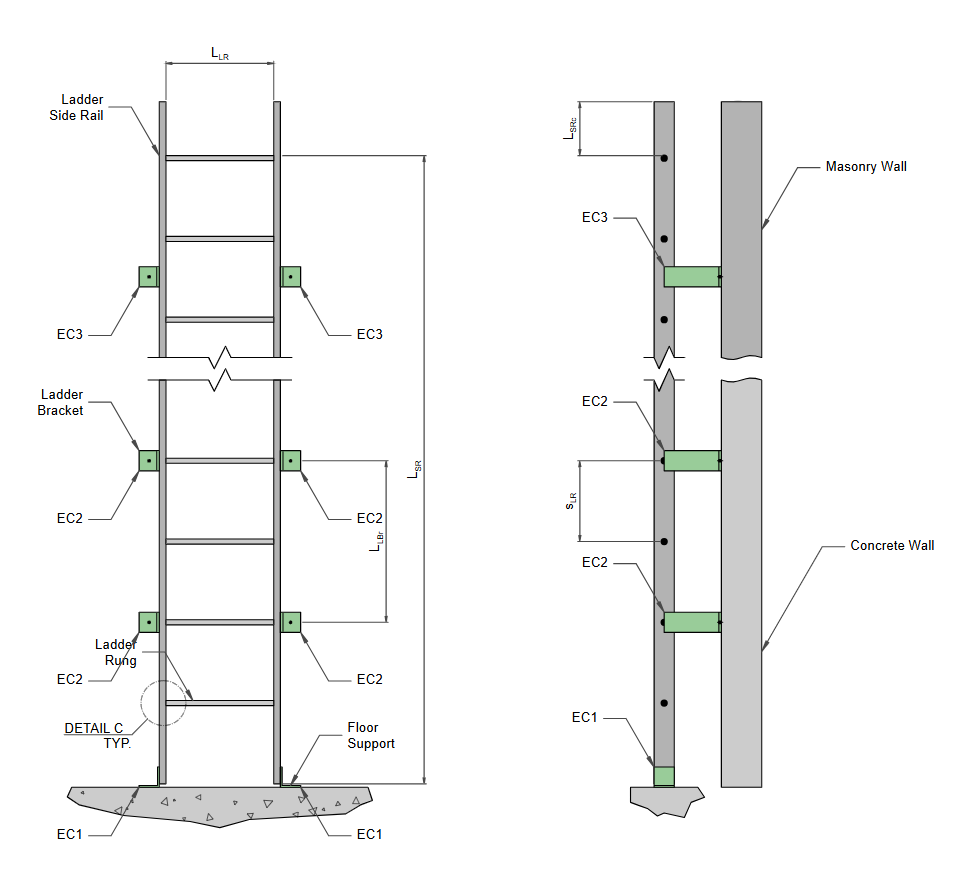

Design of Ladder System with Round Bar Rung and Flat Bar Side Rail, with Bent Plate Wall Connection to Two Wall Type and Angle Connection to Concrete Slab.

Applicable wall type(s):
EC2:

  • Concrete Wall

EC3:

  • Masonry Wall

  • Stud Wall

LS-04-1221
LS-33-1221

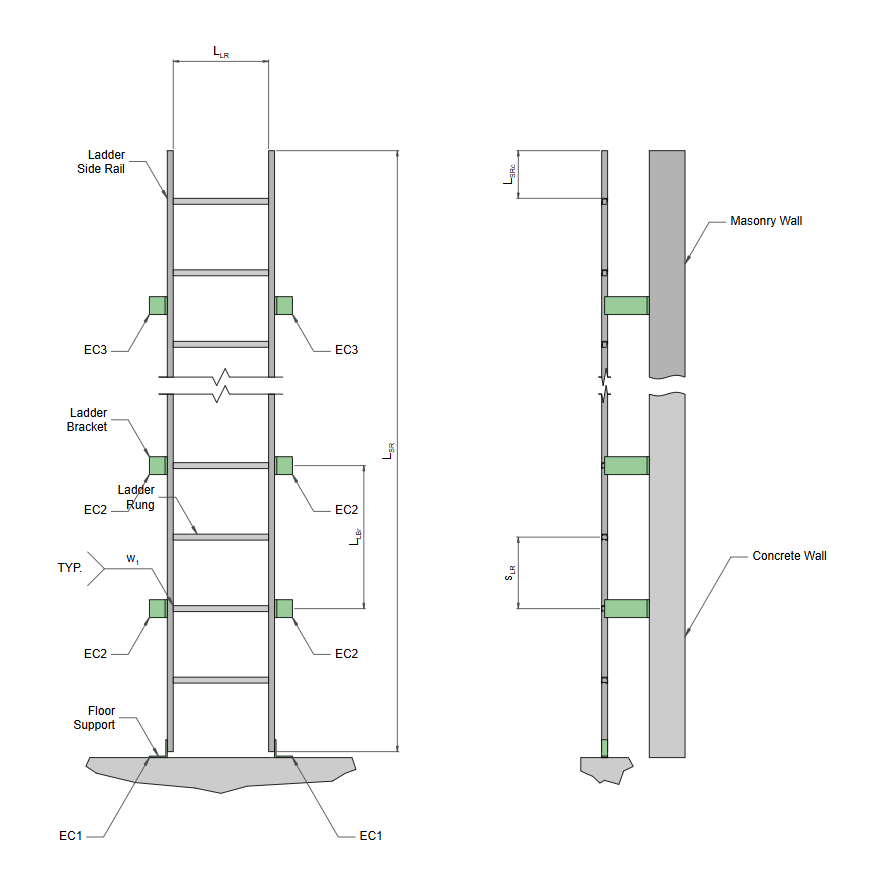

Design of Ladder System with HSS Rung and HSS Side Rail, with Bent Plate Wall Connection to Two Wall Type and Angle Connection to Concrete Slab.

Applicable wall type(s):
EC2:

  • Concrete Wall

EC3:

  • Masonry Wall

  • Stud Wall

LS-33-1221
LS-53-1221

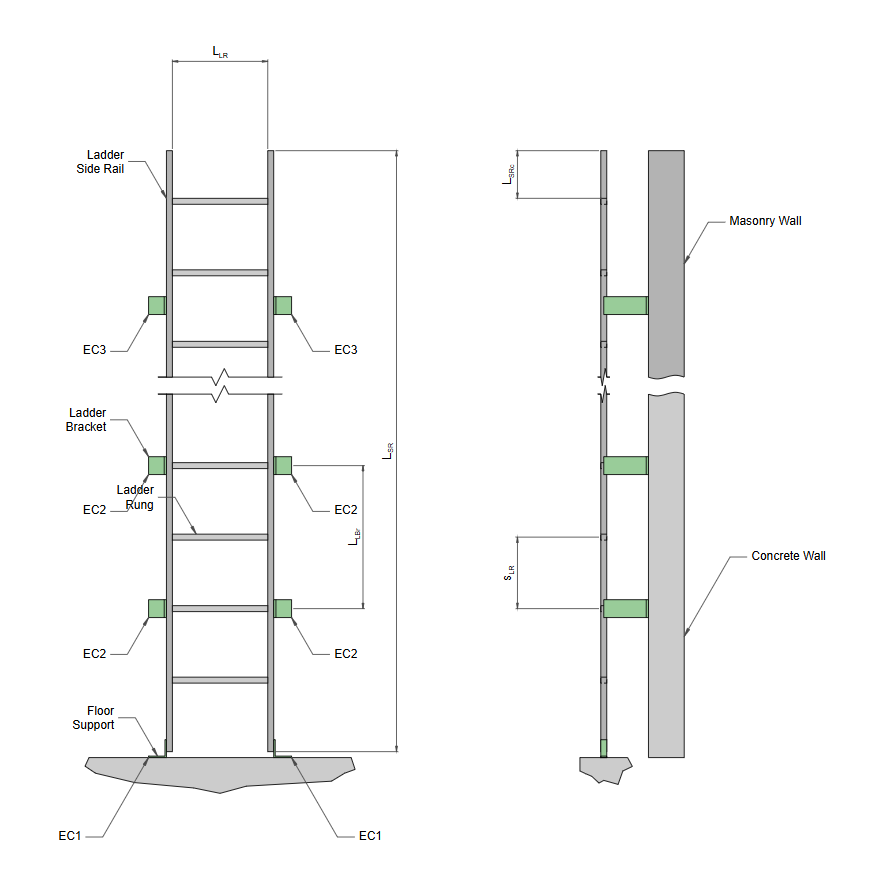

Design of Ladder System with Flat Bar Rung and HSS Side Rail, with Bent Plate Wall Connection to Two Wall and Angle Connection to Concrete Slab.

Applicable wall type(s):
EC2:

  • Concrete Wall

EC3:

  • Masonry Wall

  • Stud Wall

LS-53-1221

Steel

LS-04-5321ss

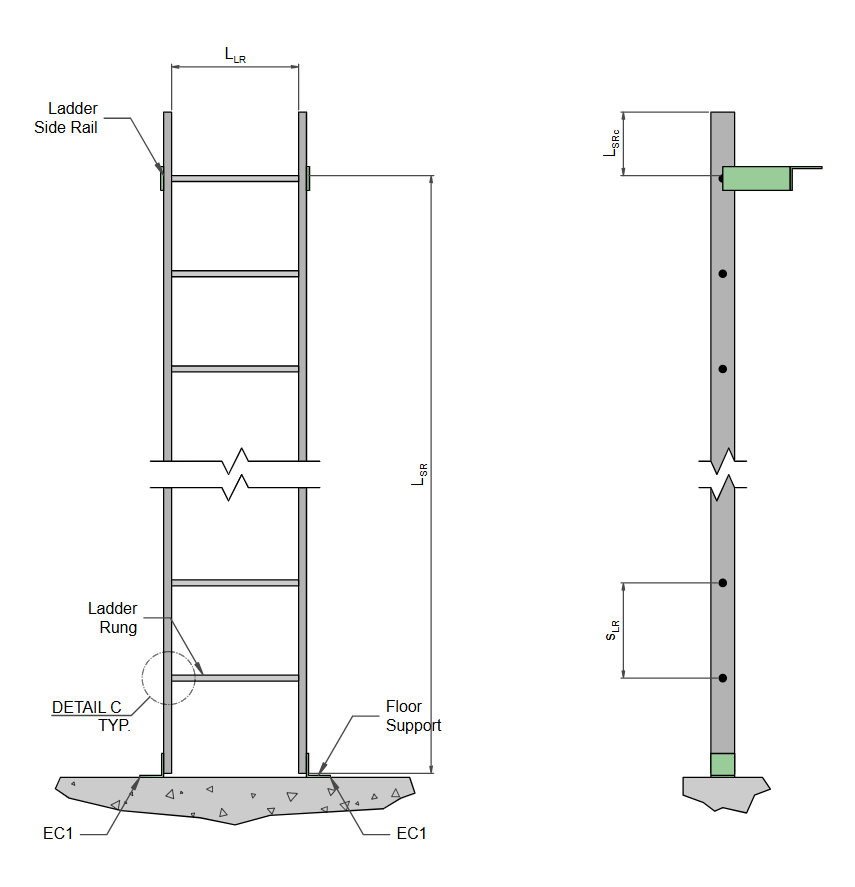

Design of Simply Supported Ladder System with Round Bar Rung and Flat Bar Side Rail, with Shear Plate Connection to Steel Angle and Angle Connection to Concrete Slab.

LS-04-5321ss
